See beyond

  THE OPTICS

Compare all the technical features and values that support Vidar’s efficiency

5 models for your various project needs

Models with cloud ANPR

These Vidar models offer ANPR-ready imaging and provide suitable input for any ANPR software. The camera also works plug & play with our online vehicle identification service, ANPR Cloud.

Vidar HDx Vidar HDx LT
IMAGING
ANPR-optimized imaging
✓		 ANPR-optimized imaging
✓
Single camera Single camera
Optical zoom
17 ×		 Optical zoom
17 ×
Focal length:
Variable: 4.8 – 84.6 mm		 Focal length
Variable: 4.8 – 84.6 mm
Resolution & frame rate:
1440 x 1080: 30fps		 Resolution & frame rate:
1440 x 1080: 30fps
Optimal ANPR range at daylight:
4 m – 20 m / 13 ft. – 65 ft.		 Optimal ANPR range at daylight:
4 m – 20 m / 13 ft. – 65 ft.
Optimal ANPR range at 0 Lux:
4 m – 20 m / 13 ft. – 65 ft.		 Optimal ANPR range at 0 Lux:
4 m – 20 m / 13 ft. – 65 ft.
RECOGNITION
ANPR:
optional (via ANPR Cloud)

ANPR:

optional (via ANPR Cloud)

Dangerous goods recognition (HAZMAT):

–

Dangerous goods recognition (HAZMAT):

–

Make, model, and color recognition:

optional (via ANPR Cloud)

Make, model, and color recognition:

optional (via ANPR Cloud)

Speed:

estimated (visual-based)

Speed:

estimated (visual-based)
TRIGGERS
Software-based triggers (Plate Finder, Virtual Loop):
✓

Software-based triggers (Plate Finder, Virtual Loop):

✓

Laser:

–

Laser:

✓

Radar:

optional

Radar:

optional
MECHANICAL

Power requirement:

24-28 V AC

Power requirement:

24-28 V AC

IP67 & IK10 rating:

✓

IP67 & IK10 rating:

✓

Operating temperature:

from -45°C to +55°C
from -49°F to +131°F

Maximum operating temperature (internal):

from -45°C to +70°C
from -49°F to +158°F

Operating temperature:

from -45°C to +55°C
from -49°F to +131°F

Maximum operating temperature (internal):

from -45°C to +70°C
from -49°F to +158°F

Dimensions:

260x240x135 mm

Dimensions:

260x240x135 mm

Weight:

4.5 kg

Weight:

4.5 kg

Models with on-board ANPR

Vidar Smart models come with on-board processing and are delivered with a pre-installed ANPR engine. You don’t need to integrate the camera with any external ANPR software, as the camera works on its own.

Vidar Smart HDx Vidar Smart 2xHDx LT Vidar Smart 2xFHD LT
IMAGING
ANPR-optimized imaging
✓		 ANPR-optimized imaging
✓		 ANPR-optimized imaging
✓
Single camera Dual camera Dual camera
Optical zoom
17 ×		 Optical zoom
17 ×		 Optical zoom
3.3 ×
Focal length:
Variable: 4.8 – 84.6 mm		 Focal length:
Camera 1 & 2:Variable: 4.8 – 84.6 mm		 Focal length:
Camera 1 & 2: Variable: 15 – 50 mm
Resolution & frame rate:
1440 x 1080: 30fps		 Resolution & frame rate:
Sensor 1 & 2: 1440 x 1080: 30fps		 Resolution & frame rate:
Sensor 1 & 2: 2048×1536 @20FPS; 1920×1080 @30FPS
Optimal ANPR range at daylight:
4 m – 20 m / 13 ft. – 65 ft.		 Optimal ANPR range at daylight:
4 m – 20 m / 13 ft. – 65 ft.		 Optimal ANPR range at daylight:
10 m – 20 m / 33 ft – 65 ft
Optimal ANPR range at 0 Lux:
4 m – 20 m / 13 ft. – 65 ft.		 Optimal ANPR range at 0 Lux:
4 m – 20 m / 13 ft. – 65 ft.		 Optimal ANPR range at 0 Lux:
10 m – 20 m / 33 ft – 65 ft
RECOGNITION

ANPR:

✓ (on-board)

ANPR:

✓ (on-board)

ANPR:

✓ (on-board)
Dangerous goods recognition (HAZMAT):
optional (on-board)

Dangerous goods recognition (HAZMAT):

optional (on-board)

Dangerous goods recognition (HAZMAT):

optional (on-board)

Make, model and color recognition:

optional (on-board)

Make, model and color recognition:

optional (on-board)

Make, model and color recognition:

optional (on-board)

Speed:

optional (certified)

Speed:

optional (certified)

Speed:

optional (certified)
TRIGGERS

Software-based triggers (Plate Finder, Virtual Loop):

✓

Software-based triggers (Plate Finder, Virtual Loop):

✓

Software-based triggers (Plate Finder, Virtual Loop):

✓

Laser:

–

Laser:

✓

Laser:

✓

Radar:

optional

Radar:

optional

Radar:

optional
MECHANICAL

Power requirement:

24-28 V AC

Power requirement:

24-28 V AC

Power requirement:

24-28 V AC

IP67 & IK10 rating:

✓

IP67 & IK10 rating:

✓

IP67 & IK10 rating:

✓

Operating temperature:

from -45°C to +55°C
from -49°F to +131°F

Operating temperature:

from -45°C to +55°C
from -49°F to +131°F

Operating temperature:

from -40°C to +55°C
from -40°F to +131°F

Dimensions:

260x240x135 mm

Dimensions:

260x240x135 mm

Dimensions:

260x240x135 mm

Weight:

4.6 kg

Weight:

4.6 kg

Weight:

4.6 kg

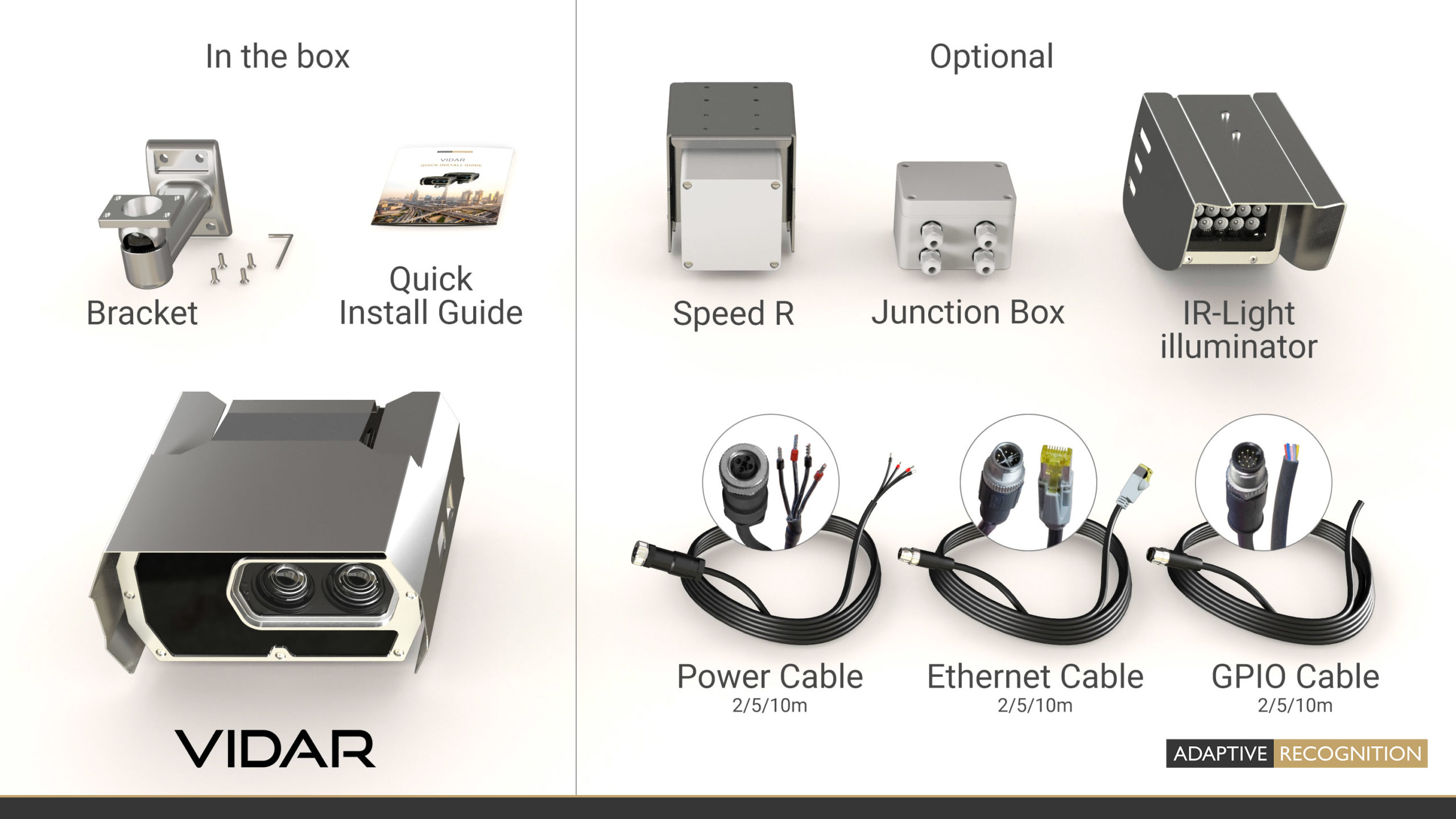

What is in the box?
